Metal Magmeter Flow Sensors 2552

Features

---

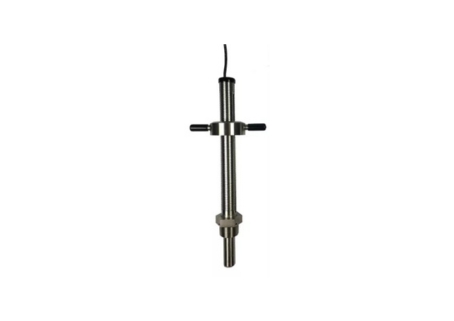

The Signet 2552 Metal Magmeter features all-stainless steel construction. The PVDF nosepiece and FPM O-rings are the only other wetted materials.

The 2552 installs quickly into standard 1¼ in. or 1½ in. pipe outlets, and is adjustable to fit pipes from DN50 to DN2550 (2 to 102 inches). Two sensor lengths allow maximum flexibility to accommodate a variety of hardware configurations, including ball valves for hot-tap installations.

When equipped with the frequency output, the 2552 is compatible with any Signet flow instrument, while the S3L Digital output enables multi-channel compatibility with the Signet 8900 Multi-Parameter Flow Controller. Select the blind 4 to 20 mA current output to interface directly with dataloggers, PLCs or telemetry systems.

Key features include Empty Pipe Detection, LED-assisted troubleshooting, and Bi-Directional span capability (in 4 to 20 mA models). The Signet 3-0252 Configuration Tool is available to customize every performance feature in the 2552 so it can be adapted to the user’s application requirements.

Features

---

• Test certificate included
• Award winning hot-tap magnetic flow sensor up to DN2550 (102 in.)
• Patented Magmeter technology*
• Operating range 0.05 to 10 m/s (0.15 to 33 ft/s)
• Reliable operation in harsh environments
• Repeatable: ±0.5% of reading @ 25 °C
• Three output options: 4 to 20 mA, Frequency/Digital (S3L)
• ISO or NPT Threads

  * U.S. Patent No: 7,055,396 B1

Applications

---

• Municipal Water Distribution
• Process and Coolant Flow
• Chemical Processing
• Wastewater
• Mining Applications
• Water Process Flow
• HVAC
