Type 2536 Rotor-X Paddlewheel Flow Sensors

Rotor-x Paddlewheel Flow Sensors type 2536

Other flow instruments

We have other flow instruments in our catalog. Please contact us to know what we can offer you.

Type 2536 Rotor-X Paddlewheel Flow Sensors Features

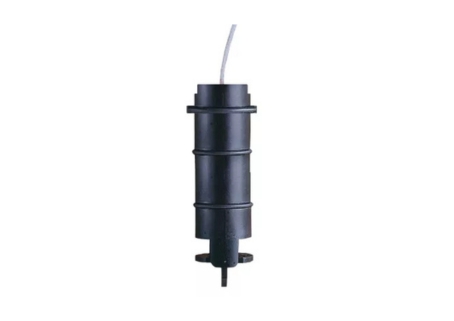

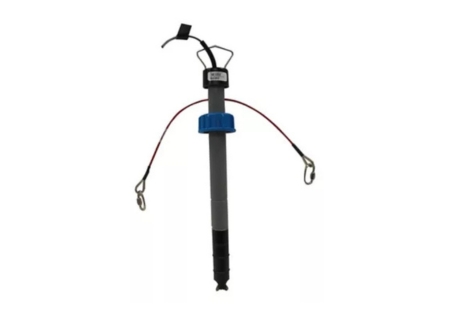

Rotor-x type 2536 paddlewheel flow sensors are robust, easy to install and low maintenance sensors. This sensor has a process-ready open collector signal with a wide dynamic flow range of 0.1 to 6 m/s The type 2536 sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices including PP and PVDF make this type highly versatile and chemically compatible to many liquid process solutions.

  • Materials: PP, PVDF or PVC
  • Highly versatile and chemically compatible with many liquid process solutions
  • DN15 to DN900
  • PVC 2536 version DN15 to DN100 (½ to 4 in.) for concentrated Sodium Hypochlorite applications

Function


The sensor measures liquid flow rates in full pipes and can be used in low pressure systems.

Measuring range


· See measurement range table

Advantages


  • Operating range 0.1 to 6 m/s (0.3 to 20 ft/s)
  • Open-collector output
  • Highly repeatable output
  • Simple, economical design
  • High resolution and noise immunity
  • Chemically resistant materials

Applications


  • Pure Water Production
  • Filtration Systems
  • Chemical Production
  • Liquid Delivery Systems
  • Pump Protection
  • Scrubber/Gas Stacks
  • Gravity Feed Lines
  • Not suitable for gas
  • Sodium Hypochlorite transfer/injection/batching
